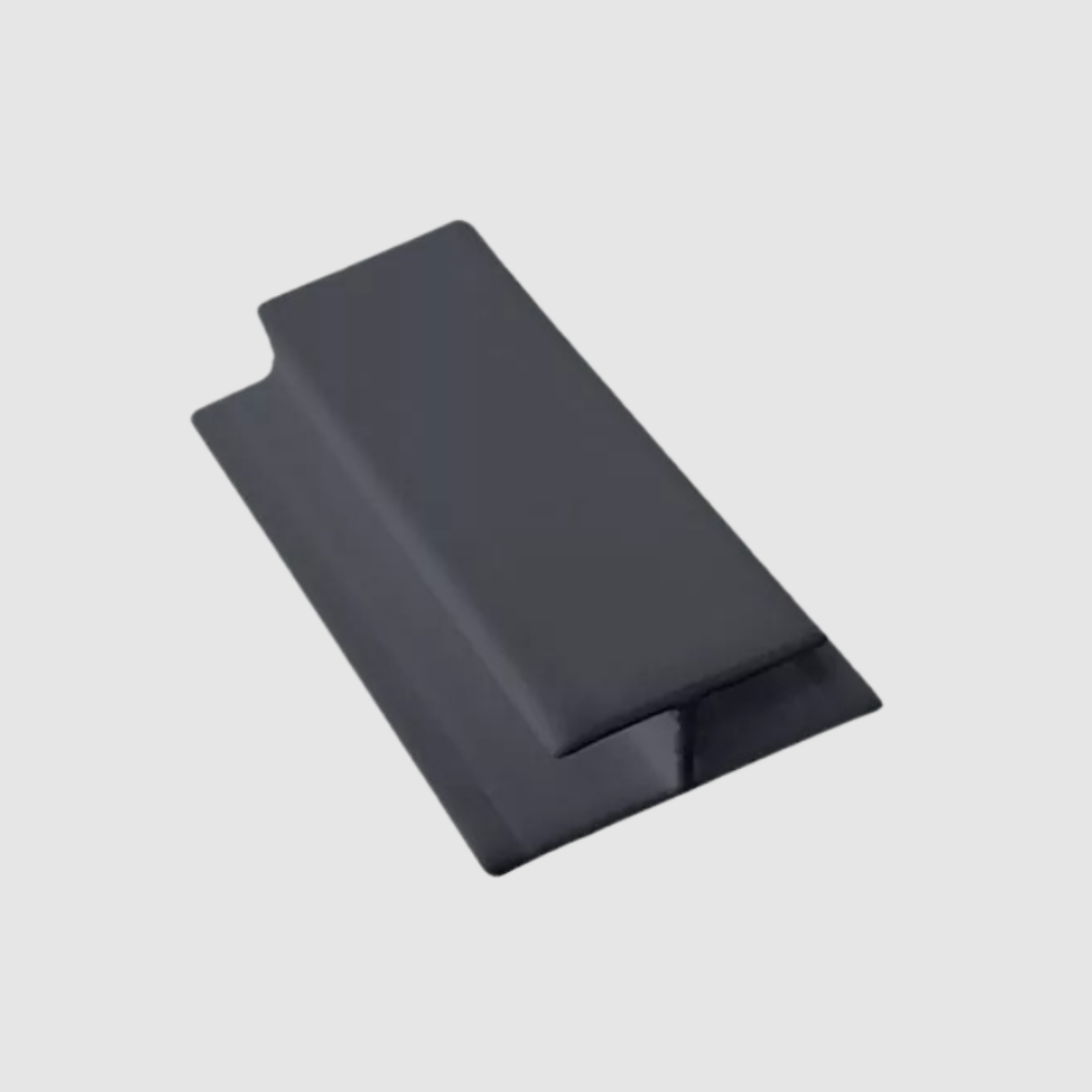

Joint cover profile - TYPE C

Description

The Joint Cover Profile has been specially developed to cover vertical seams between HPL panels in a special way.
The rear construction is no longer visible and is largely protected from weathering.
The profiles are of high quality and are used in facade and interior construction. These profiles (working material number AlMgSi0.5) are supplied as standard on
lengths of 3.055 m with a natural anodised surface treatment of 15 Mu.

Powder-coated profiles are produced with the Qualicoat® quality label in standard RAL colours. There is also a choice of various gloss levels
of 78% (glossy) or 58% (matt). Furthermore, the material thickness of at least 1.1 mm guarantees a (minimal) risk of buckling of the profiles at the location of a
free span

Material properties

- Aluminium EN AW 6060 T60 - AIMgSiO.5
- Available in anodised or qualicoat powder-coated finish
- Gloss levels available: 70° (e.g. - HPL) or 30° (e.g. - fibre cement)
- Profile length: 3.05 m.

The profiles are suitable for 6 mm boards

Processing instructions

- Respect the processing instructions of the manufacturer of the panels used.
- Fix the back side of the profile between the support structure and the gable panel.
- Ensure sufficient space between 2 contiguous profiles so that any expansion of profiles due to temperature fluctuations can be accommodated.

Maintenance

- In case of any contamination caused by environmental or climatic influences (e.g. saw dust during façade construction, soot deposits, escape rust in
coastal areas,...) the profiles can be cleaned with water or a mild soap solution and a soft sponge.
- When using a soapy solution, rinse the facade with water after cleaning.
- The use of solvents or solvents for cleaning is not permitted.
